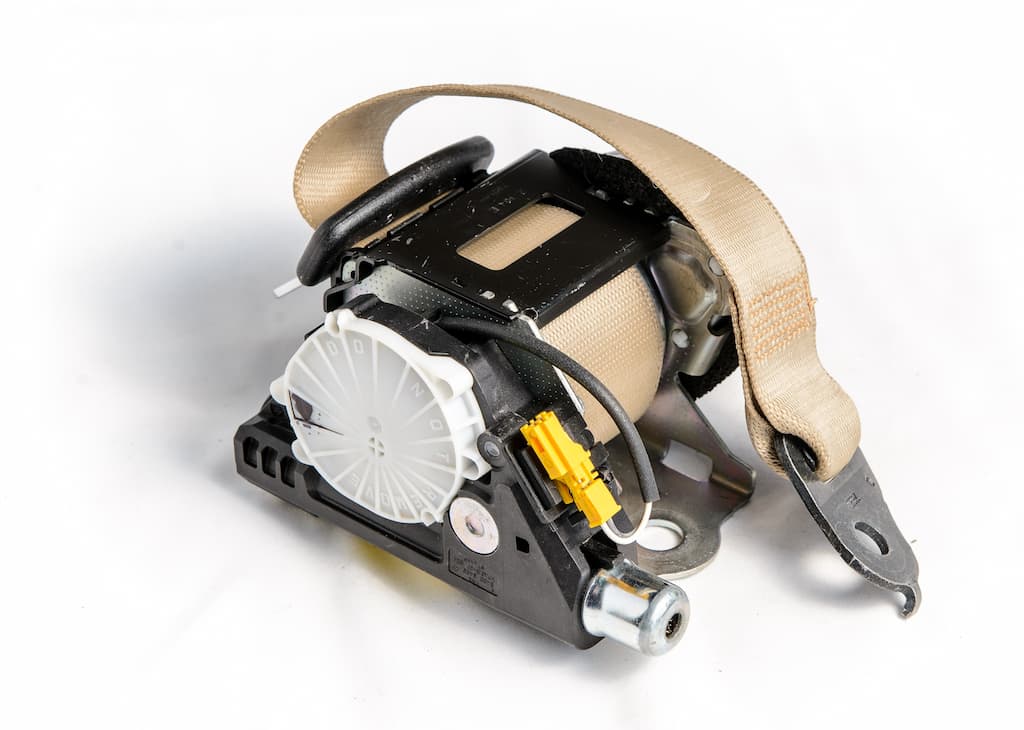

Seat Belt Pretensioners

Seat belt pretensioners are a crucial component of modern automotive safety systems, designed to enhance the effectiveness of seat belts during a collision. By tightening the seat belt in the event of a crash, pretensioners help to secure occupants more firmly in their seats, reducing the risk of injury. This comprehensive guide explores the functionality, benefits, types, maintenance, and considerations for seat belt pretensioners, highlighting their role in improving vehicle safety.

What are Seat Belt Pretensioners?

Seat belt pretensioners are devices integrated into a vehicle's seat belt system that automatically tighten the seat belt when a collision is detected. This rapid tightening helps to remove slack from the seat belt, ensuring that the occupant is securely held in place before the full force of the impact occurs. Pretensioners work in tandem with other safety systems, such as airbags, to provide comprehensive occupant protection.

How Do Seat Belt Pretensioners Work?

Activation Mechanism - Seat belt pretensioners are equipped with sensors that detect a collision's severity and impact direction. When a significant impact is detected, these sensors trigger the pretensioner mechanism.

There are two primary types of activation mechanisms:

• Mechanical Pretensioners: These use a spring or compressed gas to tighten the seat belt.
• Pyrotechnic Pretensioners: These use a small explosive charge to rapidly retract the seat belt.

Deployment Process - The deployment process of seat belt pretensioners involves several key steps:

• Impact Detection: Sensors detect the force and angle of the collision.
• Ignition: For pyrotechnic pretensioners, an igniter triggers a small explosive charge; for mechanical pretensioners, the impact activates the spring or gas mechanism.
• Retraction: The seat belt is rapidly retracted, removing any slack and securing the occupant more firmly in their seat.
• Locking: The seat belt remains tightened, holding the occupant in place during the collision and preventing excessive movement.

Types of Seat Belt Pretensioners

Mechanical Pretensioners - Mechanical pretensioners use a spring or compressed gas to tighten the seat belt. When a collision is detected, the mechanism is activated, and the seat belt is retracted. Mechanical pretensioners are less common than pyrotechnic pretensioners but still provide effective occupant protection.

Pyrotechnic Pretensioners - Pyrotechnic pretensioners use a small explosive charge to rapidly retract the seat belt. This type of pretensioner is more common in modern vehicles due to its quick response time and effectiveness. The explosive charge is triggered by the impact sensors, causing the seat belt to tighten instantaneously.

Benefits of Seat Belt Pretensioners

Enhanced Occupant Security - The primary benefit of seat belt pretensioners is the enhanced security they provide for vehicle occupants. By removing slack and tightening the seat belt, pretensioners help to position the occupant correctly against the seat, reducing the risk of injury from excessive movement.

Improved Airbag Efficiency - By holding the occupant in the optimal position, seat belt pretensioners improve the effectiveness of airbags. With the occupant securely in place, airbags can deploy and cushion the impact more effectively, reducing the risk of injury.

Reduction in Injury Severity - Studies have shown that seat belt pretensioners can significantly reduce the severity of injuries in a collision. By minimizing the forward movement of the occupant, pretensioners reduce the risk of contact with hard interior surfaces, such as the steering wheel or dashboard.

Complementary to Other Safety Systems - Seat belt pretensioners work in conjunction with other safety systems, such as load limiters, to provide comprehensive occupant protection. Load limiters allow a controlled amount of seat belt webbing to be released after the pretensioner has tightened the belt, preventing excessive force on the occupant's chest.
